AeroSound® Acoustic Floor Underlay

To install AeroSound® Acoustic Solutions in a professional manner, please drop an email at enquiry@rhira.com to receive the installation handbook.

AeroSound® SF & ESF– Acoustic Underlay

AeroSound® SF (Silent Floor) underlay is a cross linked closed cell polyolefin foam and ESF is flexible Elastomeric Rubber Foam with medium density underlay for all floating floor applications.

AeroSound® SF and ESF underlay is designed to reduce the impact of sound in floating floor systems as it is designed to be used in both commercial and residential buildings such as apartments, hotels, hospitals, schools and universities to reduce the sound transmission level to lower levels. Usual application is to separate concrete base floor from final screed or screed from final finishing that is used in corners (between wall and floor) for the same purpose.

AeroSound® Silent Floor x
AeroSound® ESF x
The AeroSound® SF and ESF – Acoustic Floor Underlay is an acoustic insulation solution for various applications like bringing more acoustic comfort, designed to avoid structural noise such as noise caused due to walking, jumping, bouncing or pulling. Also, AeroSound® Recycled Rubber Acoustic Floor Underlay (RSF) is designed to reduce impact sound in flooring systems and to increase the acoustic comfort. It is made of recycled rubber particles, the rubber structure provides high acoustic, and mechanical performance.

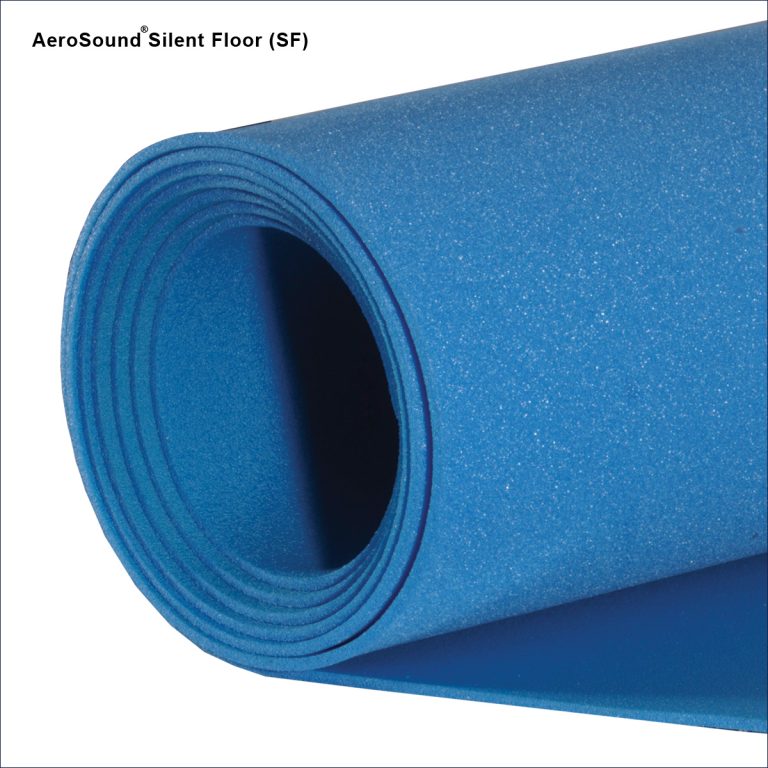

AeroSound® SF

Material:   chemically cross linked closed cell polyethylene
Density:       30 kg/m³ ± 2
Thickness:   3 mm/5 mm/8 mm/10 mm/12 mm/15 mm
Width:          1.2 m
Length:        10 – 20 m (depends on foam thickness)
Color:           blue / grey

*Other thicknesses available upon request.

AeroSound® ESF

Material:     closed cell flexible elastomeric foam
Density:       =>70 kg/m³ ± 2
Thickness:   6 mm / 10 mm / 19 mm / 25 mm
Width:          1 m
Length:        6 – 20 m (depends on foam thickness)
Color:           black

*Other thicknesses available upon request.

aerosound sf underlay
aerofoam esf underlay

APPLICATIONS

AeroSound® SF and ESF acoustic floor underlay can be
used in various applications for example,

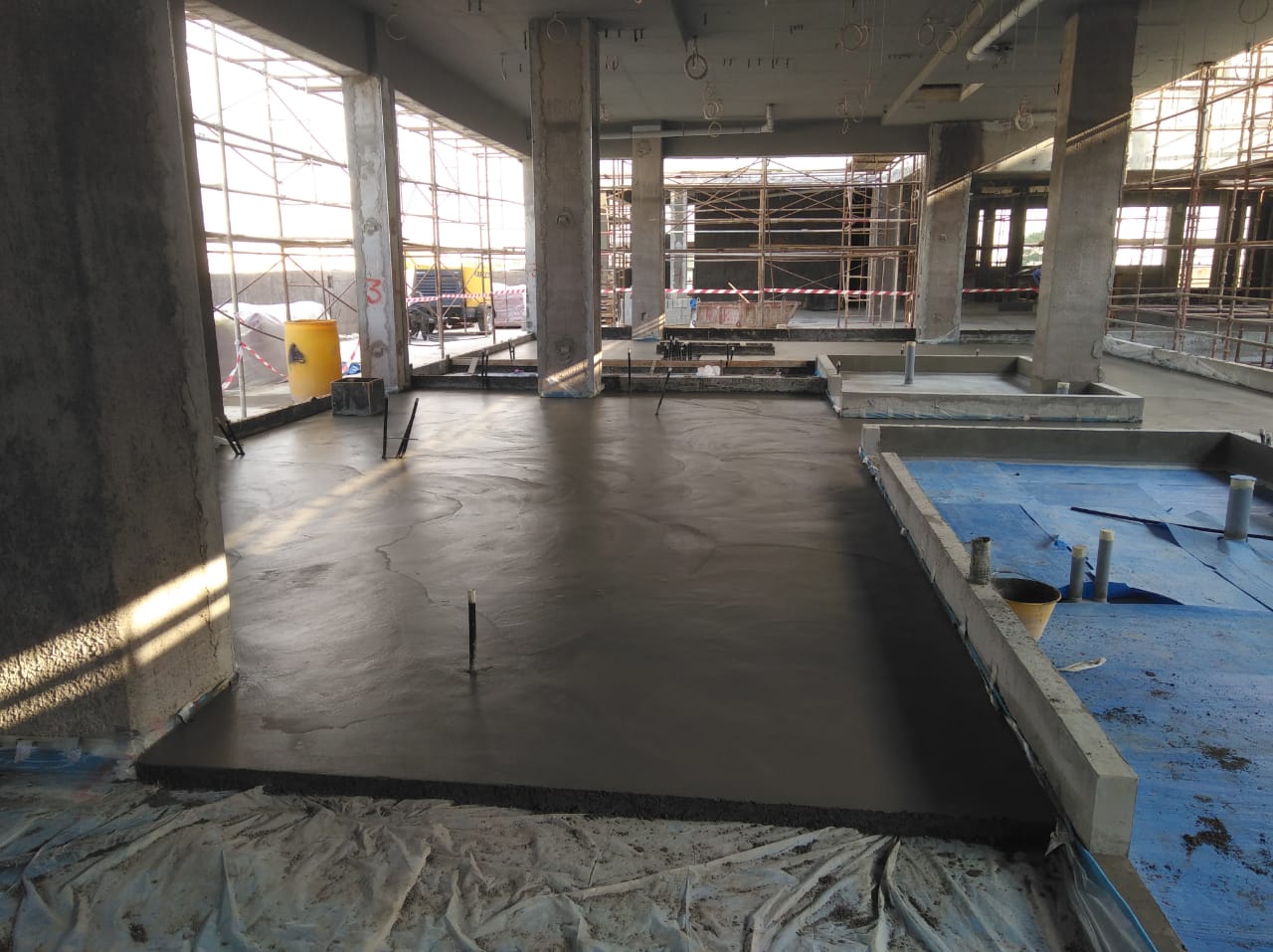

  • Layer between screed and construction slab
  • Underlay for carpets, timber wood and stone finishing

FEATURES

  • Reduces the sound transmission to the lower levels and construction of the building
  • Reduce structural noise and vibrations
  • Durable – tear and compression resistance
  • Cross linked closed cell structure makes it water and moisture resistant; no additional barrier or treatment needed
  • Chemical resistance – resistant to most chemicals and acids
  • Excellent resistance for fungus, mold and bacteria suitable for medical facilities
  • Inbuilt water vapor barrier

BENEFITS

  • Protects your health – non-toxic, non-allergen, mold and fungi resistant
  • Water and moisture resistant
  • Odorless
  • Light and easy to handle and install
  • Robust and easy to transport
  • Non-collapsing structure

Required Accessories :

  • Any Aerofoam® Tape (Alupet, Aluminum, PE, PVC, Etc.)
