NBR Rolls & Sheets

Aerofoam® NBR Rolls & Sheets are made from closed cell rubber foam, which has a microcell, non porous structure and a closed cell content bigger than 90%. They can be coated with different types of foils and can have also a factory-applied self-adhesive backing, depending on the customers’ needs. The Aerofoam® NBR rolls & sheets have a very good dimensional stability and offer an excellent protection against condensation, thermal loss and sound transfer. The installation time is reduced more than 40% due to the cutting easiness and the quick adhesion capacity of the material.

The rolls & sheets represent no hazard to the human health, being used no CFC or HCFC in their production and having a very low VOC level. They are considered environmental friendly products (with low Ozone Depletion Potential – ODP – and Global Warming Potential – GWP) and comply with the LEED requirements, helping buildings to get more LEED points.

For more information please download the catalogue here.



aerofoam_NBR_sheets_rolls



PRODUCT

Material:          closed cell elastomeric foam
Density:           60 – 70 kg/m³
Thickness:       6 mm, 9 mm, 13 mm, 19 mm, 25 mm, 32 mm, 40 mm, 50 mm
Width:             1 m
Length:           see table below
Color:              black

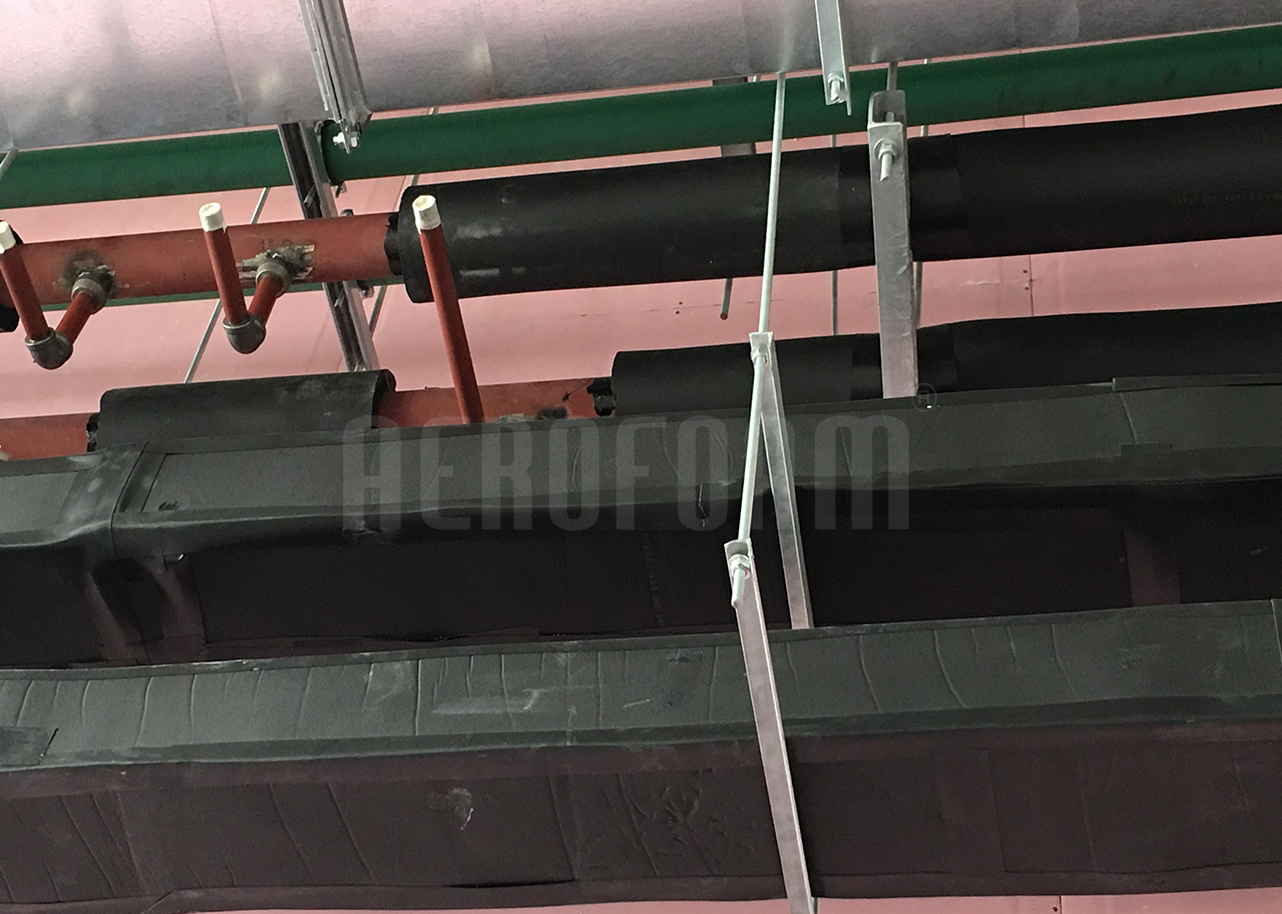

APPLICATIONS

  • Big diameter pipes (where tubes can’t be used)
  • Ventilation ducts
  • Tanks, reservoirs
  • Engine rooms (as sound attenuators)



In order to install Aerofoam® NBR rolls & sheets in a professional manner, please consult the Installation Handbook.



PROPERTIES

  • Fire rated “CLASS O” as per BS 476 Parts 6 & 7;
  • Very low water vapor permeance (0 perms);
  • High water vapor diffusion factor (> 7,300);
  • Very low water absorption rate (0.06% by volume);
  • High thermal efficiency (λ24˚ C = 0.033 W/mK; λ46˚ C = 0.035 W/mK);
  • Wide temperature range (from -50˚ C to +105˚ C);
  • Chemical resistance – resistant to most chemicals (sodium, silica, fluoride, chloride, etc.);
  • Antibacterial & antifungal;
  • Environmental friendly – ODP = 0 and GWP < 5;
  • Very low VOC emission level ( < 6 µg/m2/hr in 24 hours);
  • Sound absorption properties;
  • Easy and fast to install.



TEST REPORTS

test_reports_foam_insulation



To receive a copy of the specific test report please register here.

To download the Material Safety Data Sheet (MSDS) of the product please click here.



SIZE CHART

aerofoam_nbr_sheets_rolls_picture

Tolerance (rolls)                            ± 1-1.5 mm (thickness); ± 0.03 m (length)
Tolerance (sheets)                        ± 2 mm (thickness); ± 0.01 m (length)

For more information please download the catalogue here.
